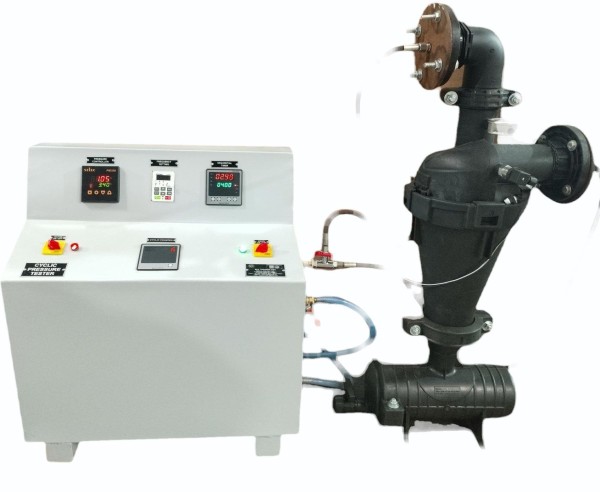

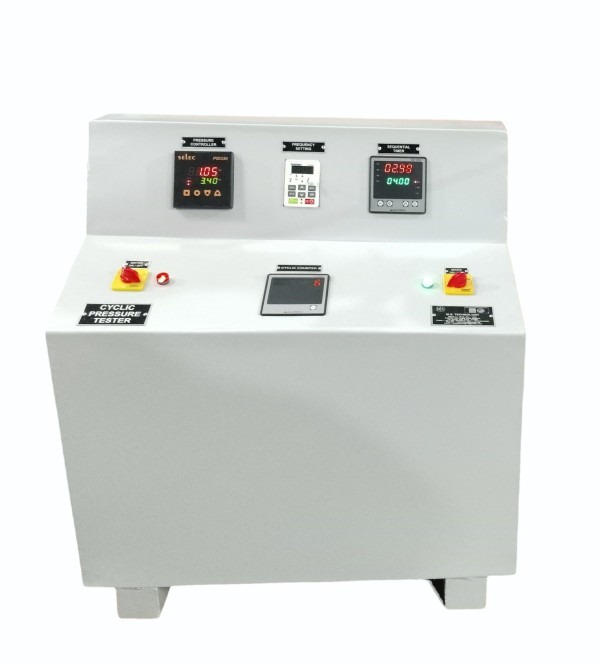

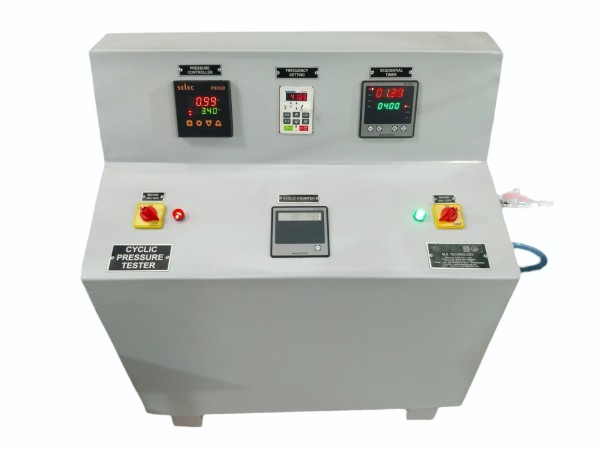

DIGITAL CYCLIC HYDROSTATIC PRESSURE TESTER

a) Digital Counter b) Cyclic Timer 0-1000/10000 cycle ,L.C. 1 cycle, qty-1 no Make: Multispan c) Digital Pressure Profile controller 0-15 kg/cm² Make: selectron – 1 Nos d) Pressure Transmitter Make: Nishka 0-15 kg/cm²-1Nos, solaniad coil and valve – 2 Nos e) Dial silicon fiiled Pressure gauge ,0-15 kg/cm2 - 1 No at Inlet f) Dial Silicon filled pressure gauge0-15 kg/cm2 -1 No at outlet g) MS Metal Flange Size:2 “,2.5”,3” with 1/4th Threaded X Nipple. (Flange Drawing for O.D. I.D. thickness and PCD hole position to be provided h) 1/4th Inch Rubber Hose Pipe 2 Mtr-2 Nos, U support and clips for proper grip and straight line for fixing the flexible hose if required. i) Drain Pipe 1/8 inches- 3 Mtr, Drain valve -1 Nos j) Provision of screw hole for wall mounting is provided. k) Mechanical and Electrical Safety switch for higher pressure release. l) HTP Pump with motor 415 v m) VF drive 415 v n) water filter 100 micron o) Buzzer p) With NABL Calibration
